Stock on Request

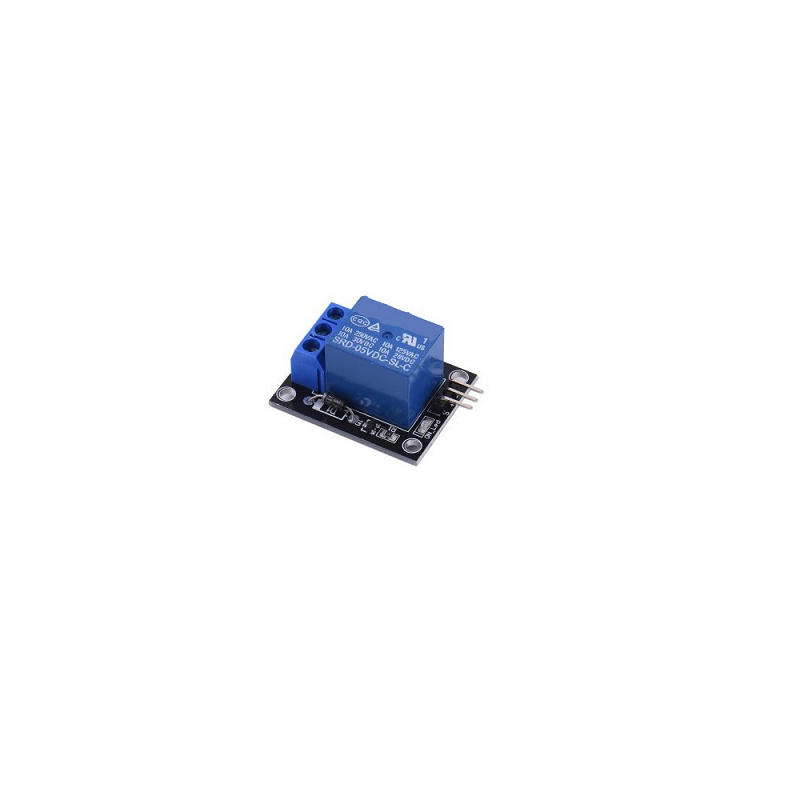

This 1-channel 5V control Single-Pole Double-Throw (SPDT) High-level trigger AC power relay board can be controlled directly via a microcontroller and switch up to 10A at 250 VAC. The inputs of 1 Channel 5V Relay Module are isolated to protect any delicate control circuitry.
The default state of the relay when the power is off for COM (Power) to be connected to NC (Normally Closed). This is the equivalent of setting the relay board IN pin to HIGH (has +5V sent to it).
A wide range of microcontrollers such as Arduino, AVR, PIC, ARM, etc can be used to control this 5V relay module
Tags: Relay, Electromechanical Relay, 1 Channel Relay, SPDT, 1 channel relay module
This 1-channel 5V control Single-Pole Double-Throw (SPDT) High-level trigger AC power relay board can be controlled directly via a microcontroller and switch up to 10A at 250 VAC. The inputs of 1 Channel 5V Relay Module are isolated to protect any delicate control circuitry.
The default state of the relay when the power is off for COM (Power) to be connected to NC (Normally Closed). This is the equivalent of setting the relay board IN pin to HIGH (has +5V sent to it).
A wide range of microcontrollers such as Arduino, AVR, PIC, ARM, etc can be used to control this 5V relay module
NOTE : There Is Printing Mistake On Module 250VAC To 30VAC And 125VAC to 28VAC But Working Will Be Same.
How to use relay module with Arduino Tutorial
1 x 5V 1 Channel Relay Module
| Manufacturer: | Texas Instruments |
| Product Category: | Digital Isolators |
| Mounting Style: | SMD/SMT |
| Package / Case: | SOIC-8 |
| Number of Channels: | 2 Channel |
| Polarity: | Bidirectional |
| Isolation Voltage: | 5000 Vrms |
| Isolation Type: | Capacitive Coupling |
